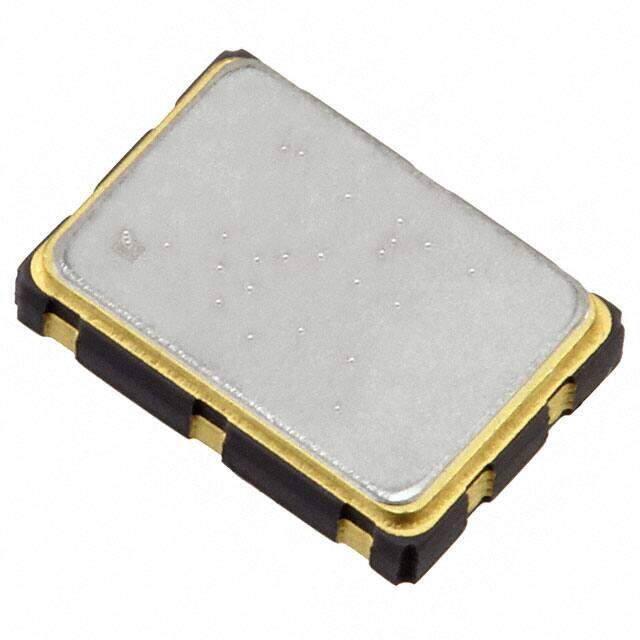

PB223-156.25M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active crystal oscillator 55/45% -40C~85C 1ns 50mA
PDF
/
Buying Options
Total Price: USD $9.24
Unit Price: USD $9.24
≥1 USD $9.24
≥10 USD $8.66624
≥100 USD $8.376896
≥500 USD $8.08808
Inventory: 1196
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PB
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 156.25MHz
Frequency Stability ±50ppm
Output LVPECL
Function Enable/Disable
Base Resonator Crystal
Physical Dimension 7.0mm x 5.0mm x 1.75mm
Operating Frequency 156.25MHz
Rise Time-Max 1ns
Fall Time-Max 1ns
Symmetry-Max 55/45%
Max Supply Current 50mA
Dimensions
Height 1.7526mm
Height Seated (Max) 0.058 1.47mm
Compliance
RoHS Status RoHS Compliant
