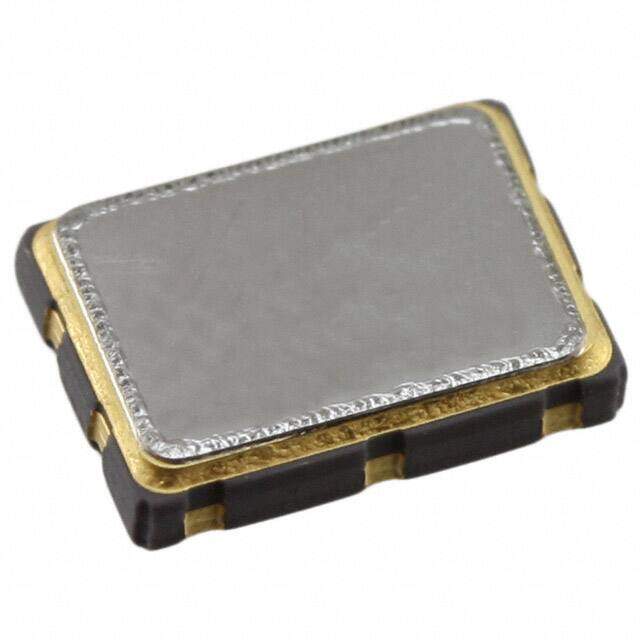

P142-155.52M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal Lead Free RoHS Compliant Enable/Disable crystal oscillator 55/45% 0C~70C 1ns 30muA
PDF
/
Buying Options
Total Price: USD $36.92
Unit Price: USD $36.918748
≥1 USD $36.918748
≥200 USD $14.732051
≥500 USD $14.239713
≥1000 USD $13.995514
Inventory: 1824
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature 0°C~70°C
Packaging Strip
Series P
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Pbfree Code yes
Part Status Active
Type XO (Standard)
Voltage - Supply 2.5V
Supply Voltage 2.5V
Reach Compliance Code unknown
Frequency 155.52MHz
Frequency Stability ±20ppm
Output LVPECL
Function Enable/Disable
Base Resonator Crystal
Physical Dimension 7.0mm x 5.0mm x 1.5mm
Operating Frequency 155.52MHz
Rise Time-Max 1ns
Fall Time-Max 1ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 30μA
Max Supply Current 90mA
Frequency Tolerance 0.002%
Dimensions
Height 1.4986mm
Height Seated (Max) 0.079 2.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
