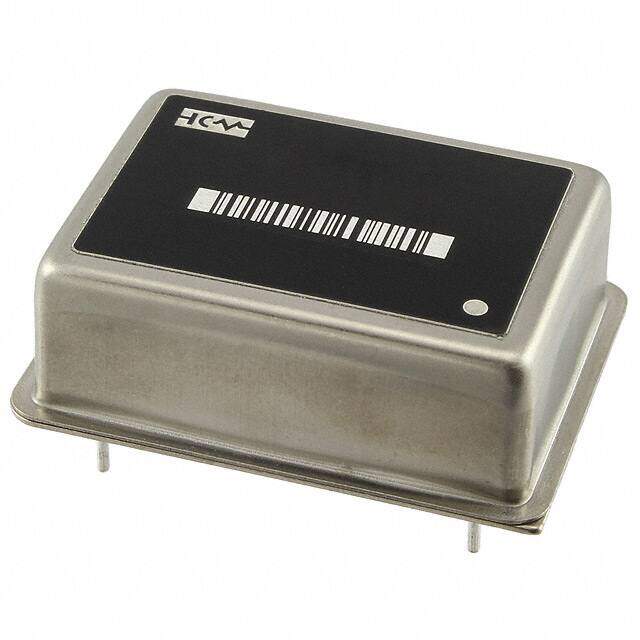

OH200-61003CF-020.0M
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module, 5 Leads
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Active CMOS Oscillator -40C~85C 5Minute 0.500 12.70mm 3.8W
PDF
/
Buying Options
Total Price: USD $186.31
Unit Price: USD $186.313639
≥1 USD $186.313639
≥200 USD $74.340337
≥500 USD $71.85633
≥1000 USD $70.628768
Inventory: 2461
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.500 12.70mm
Height 12.7mm
Technical
Warm-up Time-Max 5Minute
Input Power 1.5W
Warm-up Power 3.8W
Operating Frequency 20MHz
Physical Dimension 36.0mm x 27.0mm x 12.7mm
Base Resonator Crystal
Output CMOS
Frequency Stability ±5ppb
Frequency 20MHz
Reach Compliance Code unknown
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type OCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 1.417Lx1.063W 36.00mmx27.00mm
Series OH200
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
