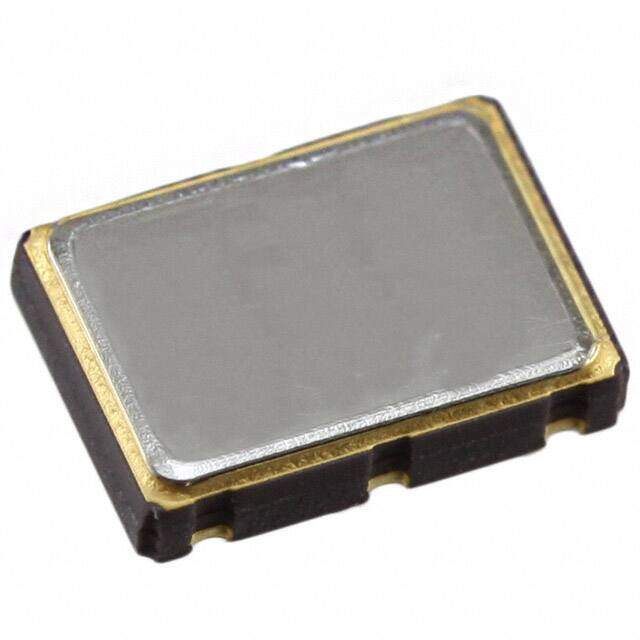

LM113-288.0M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active Oscillator 70C 75mA 0.077 1.95mm 288MHz
PDF
/
Buying Options
Total Price: USD $14.66
Unit Price: USD $14.6608
≥1 USD $14.6608
≥10 USD $13.68752
≥100 USD $13.443056
≥500 USD $13.003144
≥1000 USD $12.70984
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 5.0038mm
Length 7.0104mm
Height Seated (Max) 0.077 1.95mm
Height 1.7526mm
Technical
Max Supply Current 75mA
Current - Supply (Max) 75mA
Base Resonator Crystal
Function Enable/Disable
Output LVDS
Frequency Stability ±25ppm
Frequency 288MHz
Voltage - Supply 3.3V
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series LM113
Packaging Strip
Operating Temperature 0°C~70°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
