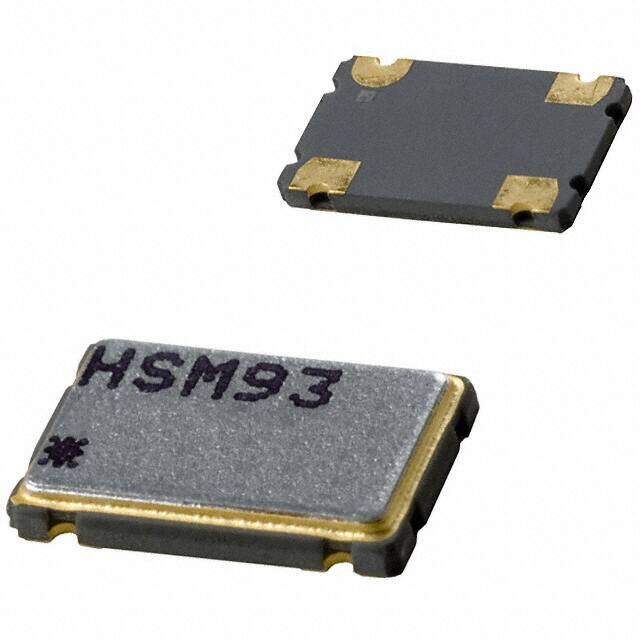

HSM93-040.0M
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active crystal oscillator 55/45% 0C~70C 6ns 45mA
PDF
/
Inventory: 4535
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series HSM9
Size / Dimension 0.295Lx0.197W 7.50mmx5.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 5V
Supply Voltage 5V
Frequency 40MHz
Frequency Stability ±100ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Physical Dimension 7.5mm x 5.0mm x 1.4mm
Operating Frequency 40MHz
Rise Time-Max 6ns
Fall Time-Max 6ns
Symmetry-Max 55/45%
Max Supply Current 45mA
Dimensions
Height 1.397mm
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status RoHS Compliant
