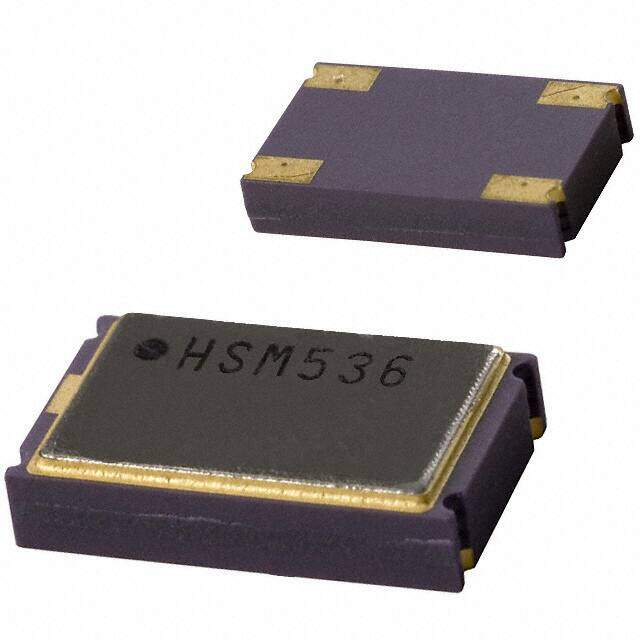

HSM536-18.4320
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal Lead Free RoHS Compliant Enable/Disable Oscillator 70C 20mA 0.105 2.67mm 0.01%
PDF
/
Inventory: 6764
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series HSM536
Size / Dimension 0.435Lx0.250W 11.05mmx6.35mm
Part Status Active
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Voltage - Supply 5V
Frequency 18.432MHz
Frequency Stability ±100ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 20mA
Max Supply Current 20mA
Frequency Tolerance 0.01%
Dimensions
Height 2.667mm
Height Seated (Max) 0.105 2.67mm
Length 11.049mm
Width 6.35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
