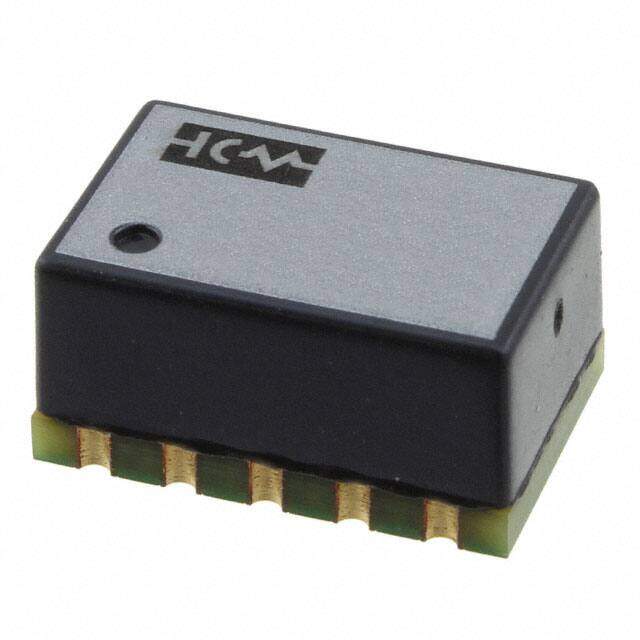

DOT050V-020.0M image
Favorite
DOT050V-020.0M image
Favorite

DOT050V-020.0M

Connor-Winfield
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Crystal RoHS Compliant Active LVCMOS Oscillator 55/45% 0C~70C 8ns 10mA
PDF
/
Buying Options
Total Price: USD $28
Unit Price: USD $28.0016
≥1 USD $28.0016
≥10 USD $26.13072
≥100 USD $25.664144
≥500 USD $24.824184
Inventory: 515
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead

Technical

Operating Temperature 0°C~70°C
Packaging Cut Tape (CT)
Series DOT050V
Size / Dimension 0.550Lx0.355W 13.97mmx9.02mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCTCXO
Additional Feature TR, 13 INCH
Voltage - Supply 3.3V
Supply Voltage 3.3V
Reach Compliance Code unknown
Frequency 20MHz
Frequency Stability ±50ppb
Output LVCMOS
Base Resonator Crystal
Physical Dimension 13.6mm x 9.15mm x 6.86mm
Operating Frequency 20MHz
Rise Time-Max 8ns
Fall Time-Max 8ns
Symmetry-Max 55/45%
Max Supply Current 10mA
Control Voltage-Max 3V
Control Voltage-Min 0.3V

Dimensions

Height 6.858mm
Height Seated (Max) 0.270 6.86mm

Compliance

RoHS Status RoHS Compliant
