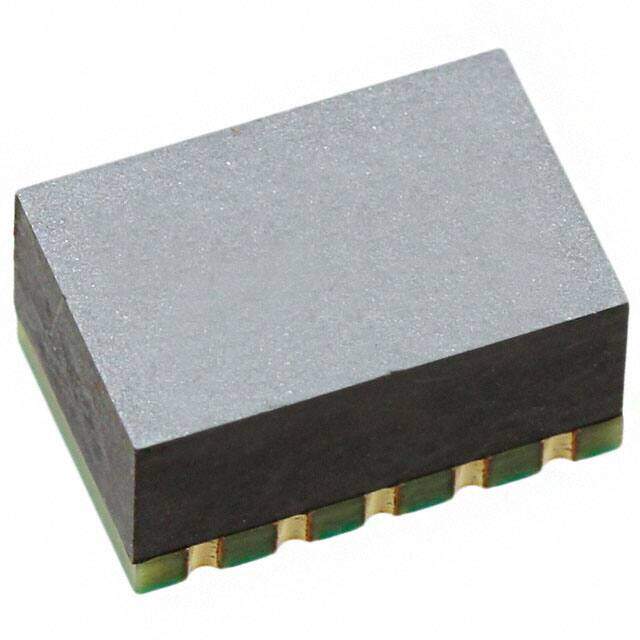

DOC052F-010.0M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC OCXO 10.000MHZ LVCMOS SMD
PDF
/
Buying Options
Total Price: USD $96.39
Unit Price: USD $96.394431
≥1 USD $96.394431
≥200 USD $38.462718
≥500 USD $37.177389
≥1000 USD $36.541946
Inventory: 1401
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series DOC
Size / Dimension 0.555Lx0.358W 14.10mmx9.10mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type OCXO
Additional Feature TAPE AND REEL
Subcategory Other Oscillators
Voltage - Supply 3.3V
Supply Voltage 3.3V
Reach Compliance Code unknown
Frequency 10MHz
Frequency Stability ±50ppb
Output LVCMOS
Base Resonator Crystal
Qualification Status Not Qualified
Physical Dimension 14.1mm x 9.1mm x 6.85mm
Operating Frequency 10MHz
Power Supplies 3.3V
Warm-up Power 3W
Input Power 1.3W
Warm-up Time-Max 1.5Minute
Dimensions
Height 6.858mm
Height Seated (Max) 0.307 7.80mm
Compliance
RoHS Status RoHS Compliant
