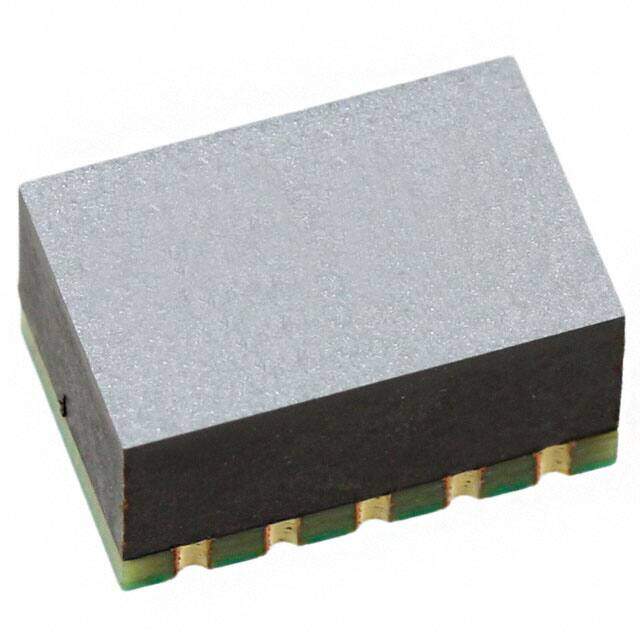

DOC020V-010.0M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Active LVCMOS crystal oscillator 0C~70C 1.5Minute 0.307 7.80mm 2.5W
PDF
/
Buying Options
Total Price: USD $33.34
Unit Price: USD $33.3432
≥1 USD $33.3432
≥10 USD $31.61576
Inventory: 179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Series DOC
Size / Dimension 0.555Lx0.358W 14.10mmx9.10mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type VCOCXO
Additional Feature TAPE AND REEL
Subcategory Other Oscillators
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 10MHz
Frequency Stability ±20ppb
Output LVCMOS
Base Resonator Crystal
Qualification Status Not Qualified
Physical Dimension 14.1mm x 9.1mm x 6.85mm
Operating Frequency 10MHz
Power Supplies 3.3V
Control Voltage-Max 3V
Control Voltage-Min 0.3V
Warm-up Power 2.5W
Input Power 1.1W
Warm-up Time-Max 1.5Minute
Dimensions
Height 6.858mm
Height Seated (Max) 0.307 7.80mm
Compliance
RoHS Status RoHS Compliant
