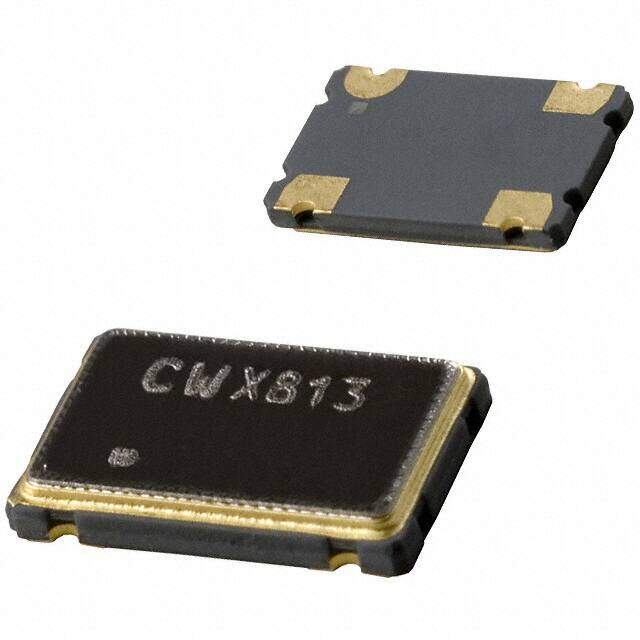

CWX813-072.0M
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 72.000MHZ LVCMOS SMD
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.224
≥1 USD $4.224
≥10 USD $3.9996
≥100 USD $3.777312
≥500 USD $3.5552
≥1000 USD $3.444109
Inventory: 3018
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.051 1.30mm
Height 1.2954mm
Technical
Max Supply Current 30mA
Nominal Supply Current 30mA
Symmetry-Max 60/40%
Fall Time-Max 6ns
Rise Time-Max 6ns
Operating Frequency 72MHz
Physical Dimension 7.0mm x 5.0mm x 1.3mm
Base Resonator Crystal
Function Enable/Disable
Output LVCMOS
Frequency Stability ±25ppm
Frequency 72MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series CWX813
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
