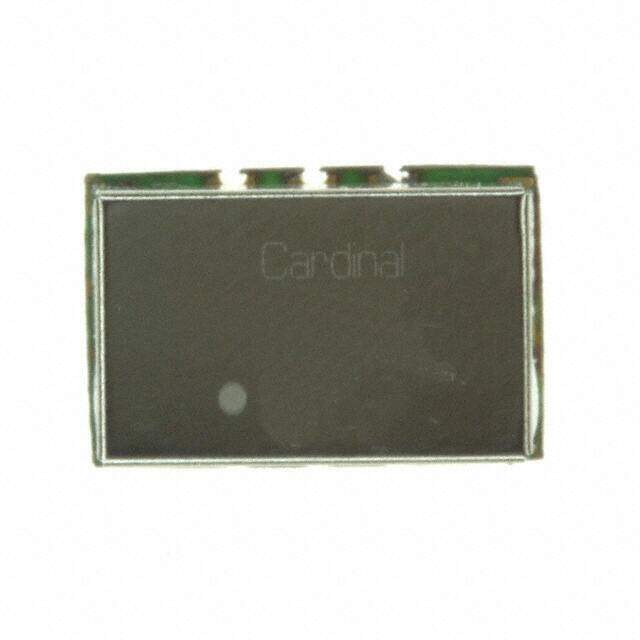

CTVED-A5B3-311.04TS
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCTCXO 311.0400MHZ LVPE
PDF
/
Buying Options
Total Price: USD $107.2
Unit Price: USD $107.202224
≥1 USD $107.202224
≥200 USD $42.774282
≥500 USD $41.345847
≥1000 USD $40.639507
Inventory: 9821
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.9916mm
Length 13.9954mm
Height Seated (Max) 0.138 3.50mm
Height 3.5052mm
Technical
Max Supply Current 100mA
Current - Supply (Max) 100mA
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±2.5ppm
Frequency 311.04MHz
Voltage - Supply 3.3V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Type VCTCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.551Lx0.354W 14.00mmx9.00mm
Series CTVED
Packaging Tube
Operating Temperature -20°C~70°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
