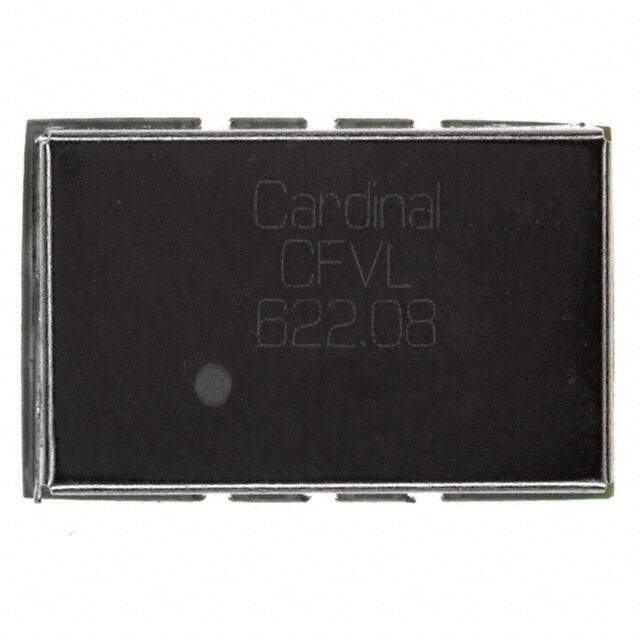

CFVL-A7BP-622.08TS
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 622.0800MHZ LVDS
PDF
/
Buying Options
Total Price: USD $97.74
Unit Price: USD $97.742779
≥1 USD $97.742779
≥200 USD $39.001007
≥500 USD $37.697298
≥1000 USD $37.053977
Inventory: 3435
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.9916mm
Length 13.9954mm
Height Seated (Max) 0.138 3.50mm
Height 3.5052mm
Technical
Max Supply Current 100mA
Current - Supply (Max) 100mA
Base Resonator Crystal
Function Enable/Disable
Output LVDS
Frequency Stability ±50ppm
Frequency 622.08MHz
Voltage - Supply 3.3V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.551Lx0.354W 14.00mmx9.00mm
Series CFVL
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
