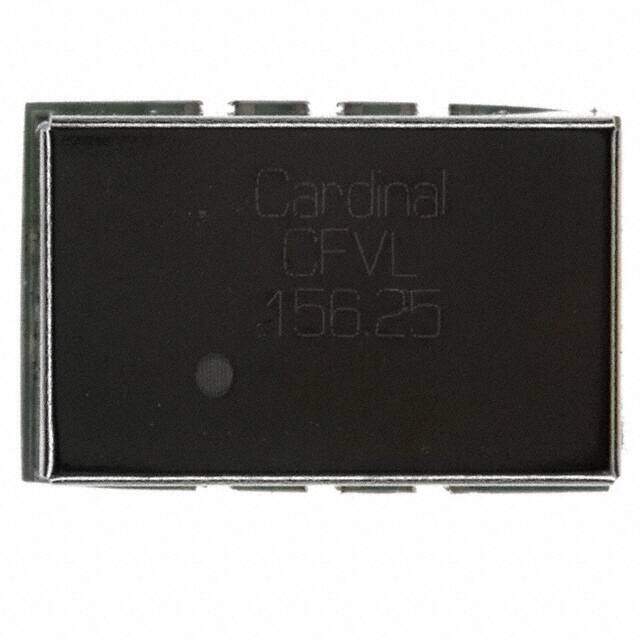

CFVL-A7BP-156.25TS image
Favorite
CFVL-A7BP-156.25TS image
Favorite

CFVL-A7BP-156.25TS

Cardinal Components Inc.
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC VCXO 156.2500MHZ LVDS
PDF
/
Inventory: 7310
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Size / Dimension 0.551Lx0.354W 14.00mmx9.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCXO
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 3.3V
Frequency 156.25MHz
Frequency Stability ±50ppm
Output LVDS
Function Enable/Disable
Base Resonator Crystal
Series CFVL
Packaging Tube
Operating Temperature -40°C~85°C
Max Supply Current 100mA
Current - Supply (Max) 100mA

Physical

Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 8.9916mm
Length 13.9954mm
Height Seated (Max) 0.138 3.50mm
Height 3.5052mm
