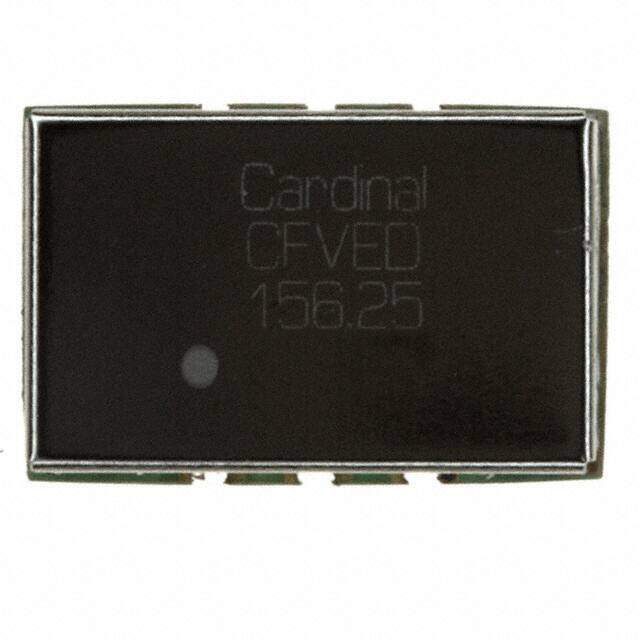

CFVED-A7BP-156.25TS
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 156.2500MHZ LVPECL
PDF
/
Buying Options
Total Price: USD $81.98
Unit Price: USD $81.978789
≥1 USD $81.978789
≥200 USD $32.710904
≥500 USD $31.617258
≥1000 USD $31.077656
Inventory: 2608
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series CFVED
Size / Dimension 0.551Lx0.354W 14.00mmx9.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCXO
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 3.3V
Frequency 156.25MHz
Frequency Stability ±50ppm
Output LVPECL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 100mA
Max Supply Current 100mA
Dimensions
Height 3.5052mm
Height Seated (Max) 0.138 3.50mm
Length 13.9954mm
Width 8.9916mm
Compliance
RoHS Status RoHS Compliant
