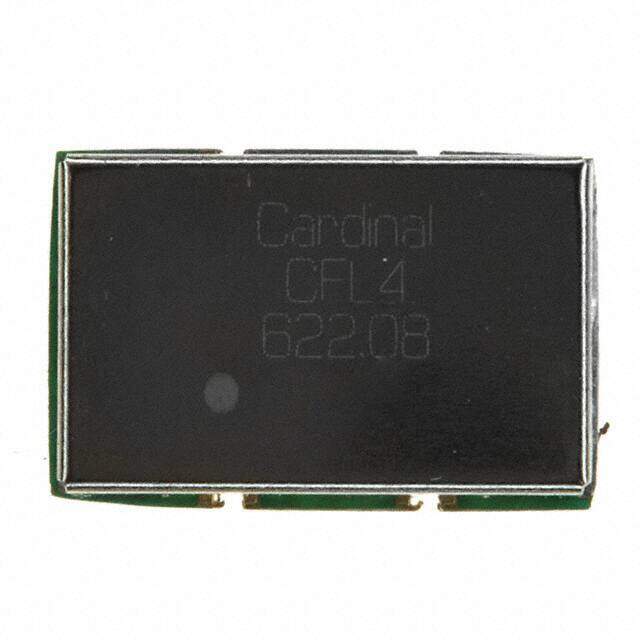

CFL4-A7BP-622.08
RoHS
/
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 622.0800MHZ LVDS SMD
PDF
/
Inventory: 5621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.9916mm
Length 13.9954mm
Height Seated (Max) 0.138 3.50mm
Height 3.5052mm
Technical
Max Supply Current 100mA
Current - Supply (Max) 100mA
Base Resonator Crystal
Output LVDS
Frequency Stability ±50ppm
Frequency 622.08MHz
Voltage - Supply 3.3V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.551Lx0.354W 14.00mmx9.00mm
Series CFL4
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
