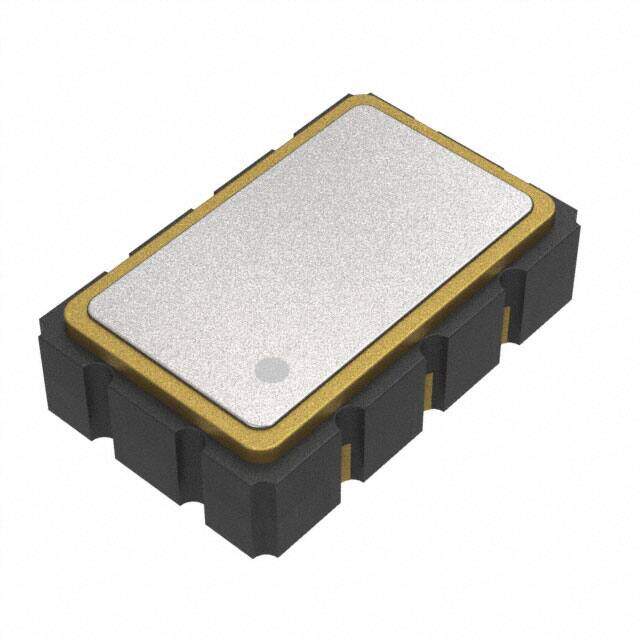

AX5PBF4-614.4000
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active crystal oscillator 55/45% -40C~85C 0.4ns 110mA
PDF
/
Inventory: 2790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series ClearClock? AX5
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 2.5V
Supply Voltage 2.5V
Frequency 614.4MHz
Frequency Stability ±20ppm
Output LVPECL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 110mA
Physical Dimension 5.0mm x 3.2mm x 1.4mm
Operating Frequency 614.4MHz
Rise Time-Max 0.4ns
Fall Time-Max 0.4ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 100mA
Dimensions
Height Seated (Max) 0.059 1.50mm
Compliance
RoHS Status RoHS Compliant
