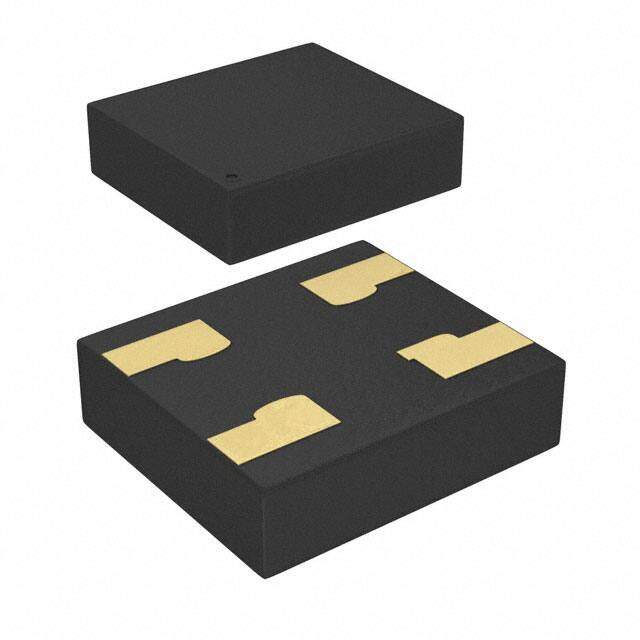

ASTMUPCD-33-5.000MHZ-EJ-E-T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 5.0000MHZ LVCMOS SMD
PDF
/
Inventory: 5110
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Height 812.8μm
Technical
Max Supply Current 36mA
Current - Supply (Disable) (Max) 31mA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 5MHz
Physical Dimension 2.7mm x 2.4mm x 0.75mm
Base Resonator MEMS
Function Enable/Disable
Output LVCMOS
Frequency Stability ±20ppm
Frequency 5MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.106Lx0.094W 2.70mmx2.40mm
Series ASTMUPC
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
