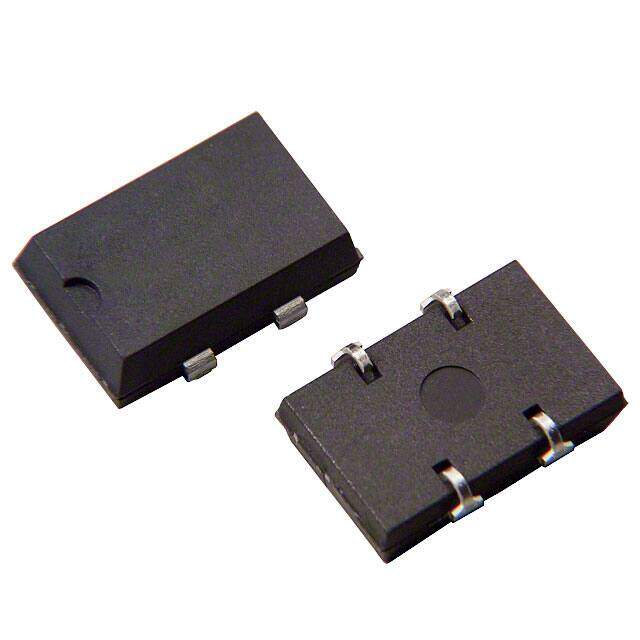

ASM-5.000MHZ-ET
RoHS
/
Package 4-SOJ, 5.08mm pitch
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 5.0000MHZ HCMOS TTL
PDF
/
Inventory: 5587
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series ASM
Size / Dimension 0.551Lx0.352W 14.00mmx8.95mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 5V
Frequency 5MHz
Frequency Stability ±100ppm
Output HCMOS, TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 20mA
Max Supply Current 20mA
Dimensions
Height 4.699mm
Height Seated (Max) 0.185 4.70mm
Length 13.9954mm
Width 8.9408mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
