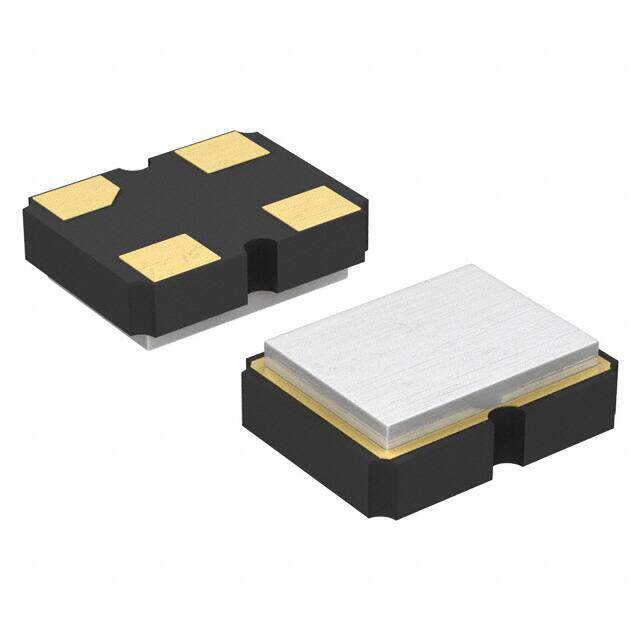

ASE3-50.000MHZ-KT
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
50MHz CMOS XO (Standard) Oscillator Surface Mount 1.8V 6mA Enable/Disable
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.476254
≥1 USD $1.476254
≥10 USD $1.392693
≥100 USD $1.313865
≥500 USD $1.239494
≥1000 USD $1.169329
Inventory: 1156
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Number of Pins 4
Technical
Operating Temperature -10°C~70°C
Packaging Tape & Reel (TR)
Series ASE3
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Voltage - Supply 1.8V
Depth 2.5mm
Frequency 50MHz
Frequency Stability ±30ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 6mA
Operating Supply Voltage 1.8V
Current - Supply (Disable) (Max) 10μA
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Load Capacitance 15pF
Max Supply Current 6mA
Frequency Tolerance 0.003%
Dimensions
Height 1.2446mm
Height Seated (Max) 0.047 1.20mm
Length 3.2mm
Width 2.4892mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
