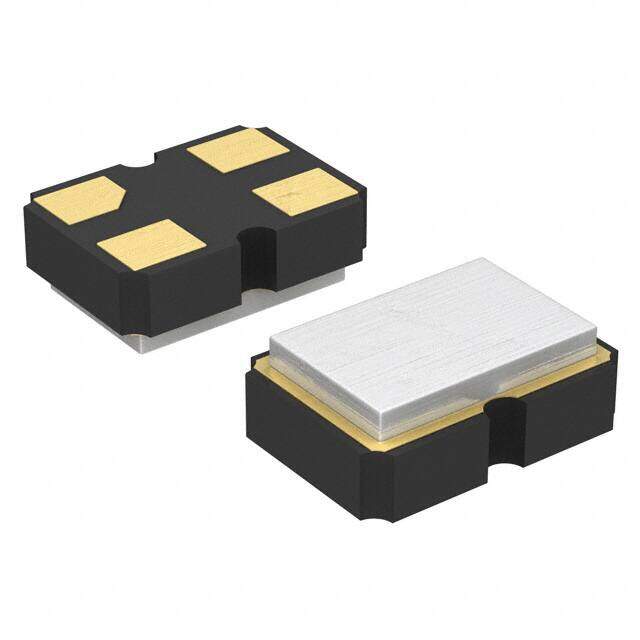

ASDK2-32.768KHZ-LR-T3
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 32.768KHZ 1.8V CMOS SMD
PDF
/
Buying Options
Total Price: USD $2.05
Unit Price: USD $2.05001
≥1 USD $2.05001
≥10 USD $1.93397
≥100 USD $1.8245
Inventory: 3000
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series ASDK
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 1.8V
Frequency 32.768kHz
Frequency Stability ±25ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 1.5mA
Current - Supply (Disable) (Max) 10μA
Max Supply Current 1.5mA
Dimensions
Height 939.8μm
Height Seated (Max) 0.037 0.95mm
Length 2.4892mm
Width 2.0066mm
Compliance
RoHS Status RoHS Compliant
