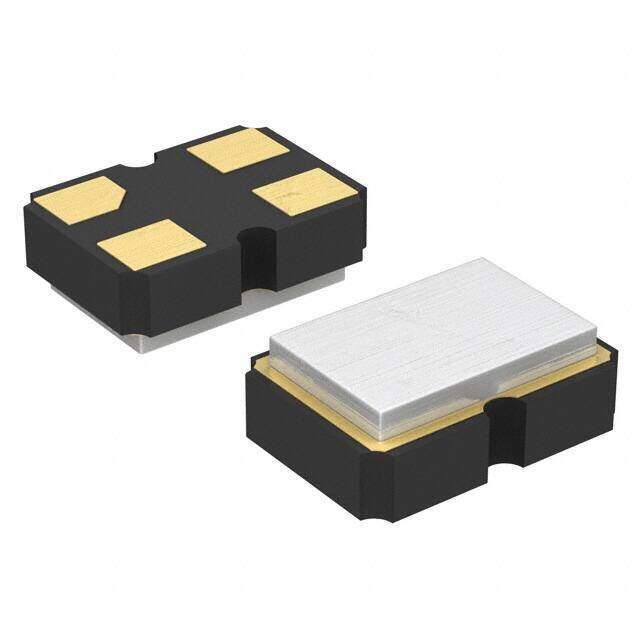

ASD-1.8432MHZ-LC-T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal Oscillator 1.8432MHz 3.3V 15pF 4-Pin SMD T/R
PDF
/
Inventory: 5102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Number of Pins 4
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series ASD
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Terminal Finish Gold (Au) - electroplated
Subcategory Other Oscillators
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 1.8432MHz
Frequency Stability ±50ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Qualification Status Not Qualified
Operating Frequency 1.8432MHz
Operating Supply Voltage 3.3V
Current - Supply (Disable) (Max) 20μA
Load Capacitance 15pF
Max Supply Current 5mA
Dimensions
Height 990.6μm
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status RoHS Compliant
