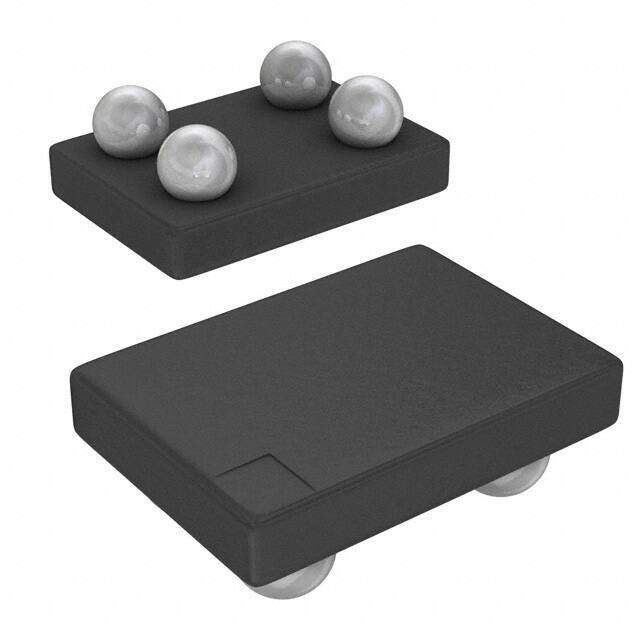

ASCSM-26.000MHZ-LR-T
RoHS
/
Package 4-UFBGA, CSPBGA
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 26.0000MHZ CMOS SMD
PDF
/
Inventory: 971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-UFBGA, CSPBGA
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series ASCSM, Pure Silicon?
Size / Dimension 0.070Lx0.049W 1.79mmx1.25mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Solder
Type XO (Standard)
Subcategory Other Oscillators
Voltage - Supply 1.7V~3.6V
Reach Compliance Code unknown
Frequency 26MHz
Frequency Stability ±25ppm
Output CMOS
Function Enable/Disable
Base Resonator MEMS
Qualification Status Not Qualified
Operating Frequency 26MHz
Power Supplies 1.8/3.3V
Current - Supply (Disable) (Max) 15μA
Load Capacitance 15pF
Max Supply Current 6.5mA
Dimensions
Height 685.8μm
Height Seated (Max) 0.027 0.69mm
Compliance
RoHS Status RoHS Compliant
