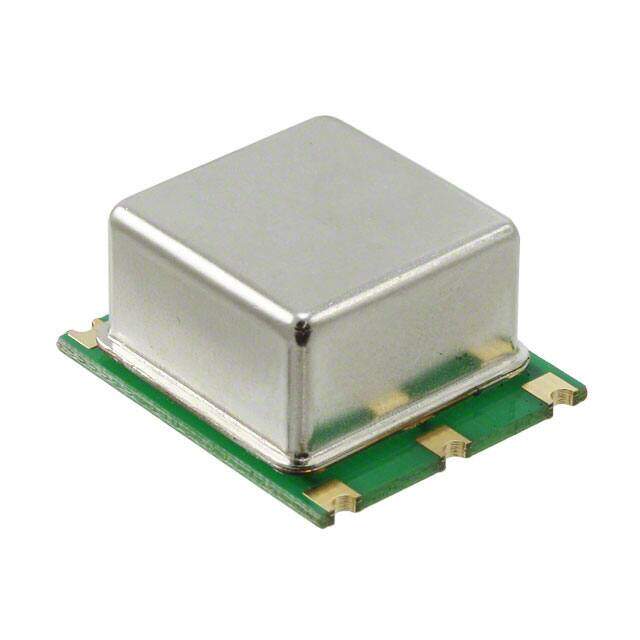

AOCJY-13.000MHZ-E
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead, 5 Leads
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCOCXO 13.0000MHZ CMOS
PDF
/
Inventory: 2967
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead, 5 Leads
Number of Pins 5
Technical
Operating Temperature -20°C~70°C
Packaging Digi-Reel?
Series AOCJY
Size / Dimension 1.000Lx0.866W 25.40mmx22.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination SMD/SMT
Type VCOCXO
Additional Feature TRAY
Subcategory Other Oscillators
Supply Voltage 3.3V
Frequency 13MHz
Frequency Stability ±10ppb
Output CMOS
Function Standby (Power Down)
Base Resonator Crystal
Operating Frequency 13MHz
Operating Supply Voltage 3.3V
Load Capacitance 15pF
Warm-up Power 3.6W
Input Power 1.4W
Warm-up Time-Max 3Minute
Dimensions
Height 12.7mm
Height Seated (Max) 0.500 12.70mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
