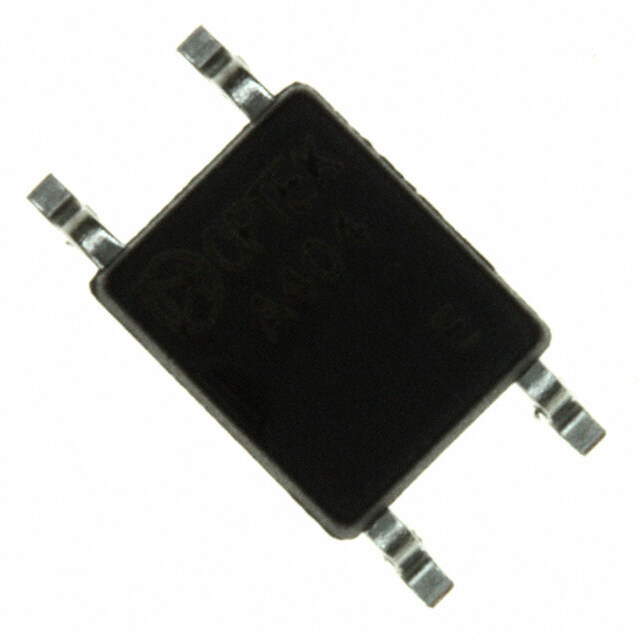

OPIA404BTR
RoHS
/
Package 4-SMD, Gull Wing
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
OPTOISOLATOR 3.75KV TRANS 4-SOP
PDF
/
Inventory: 7204
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Vce Saturation (Max) 300mV
Current Transfer Ratio (Max) 600% @ 5mA
Current Transfer Ratio (Min) 50% @ 5mA
Current - DC Forward (If) (Max) 50mA
Collector Emitter Saturation Voltage 300mV
Voltage - Output (Max) 60V
Reverse Breakdown Voltage 6V
Current - Output / Channel 50mA
Rise / Fall Time (Typ) 5μs 4μs
Max Collector Current 50mA
Collector Emitter Voltage (VCEO) 60V
Fall Time (Typ) 20 μs
Forward Voltage 1.75V
Rise Time 20μs
Output Current per Channel 50mA
Forward Current 50mA
Input Type DC
Voltage - Forward (Vf) (Typ) 1.6V
Power Dissipation 170mW
Number of Channels 1
Number of Elements 1
Output Type Transistor
Output Voltage 60V
Voltage - Isolation 3750Vrms
Max Power Dissipation 170mW
Min Operating Temperature -55°C
Max Operating Temperature 115°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~115°C
Physical
Supplier Device Package 4-SOP (2.54mm)
Number of Pins 4
Package / Case 4-SMD, Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
