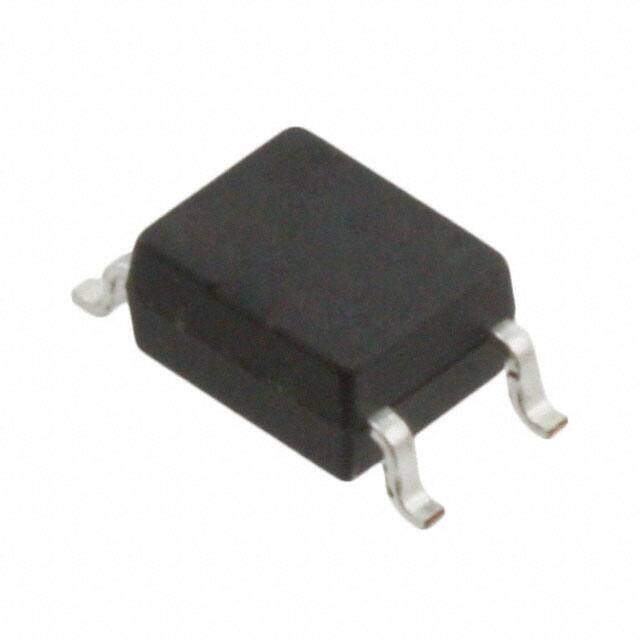

OPIA401BTR
RoHS
/
Package 4-SMD, Gull Wing
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
OPTOISO 3.75KV DARLINGTON 4SOP
PDF
/
Inventory: 7980
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current Transfer Ratio 1000 %
Vce Saturation (Max) 1.5V
Current Transfer Ratio (Min) 1000% @ 1mA
Current - DC Forward (If) (Max) 50mA
Collector Emitter Saturation Voltage 1.5V
Voltage - Output (Max) 300V
Current - Output / Channel 150mA
Rise / Fall Time (Typ) 100μs 20μs
Max Collector Current 150mA
Collector Emitter Voltage (VCEO) 1V
Output Current per Channel 150mA
Input Type DC
Voltage - Forward (Vf) (Typ) 1.2V
Number of Channels 1
Output Type Darlington
Output Voltage 300V
Voltage - Isolation 3750Vrms
Max Power Dissipation 170mW
Min Operating Temperature -30°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -30°C~100°C
Physical
Supplier Device Package 4-SOP (2.54mm)
Number of Pins 4
Package / Case 4-SMD, Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
