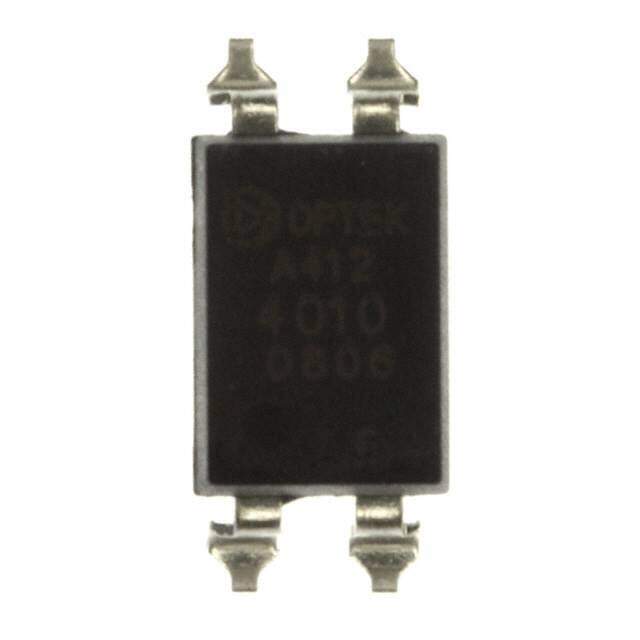

OPIA4010ATU
RoHS
/
Package 4-SMD, Gull Wing
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
OPTOISOLTR 5KV DARLINGTON 4-SMD
PDF
/
Inventory: 3940
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Number of Pins 4
Technical
Operating Temperature -30°C~100°C
Packaging Tube
Published 2009
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature UL RECOGNIZED, VDE APPROVED
Max Power Dissipation 200mW
Voltage - Isolation 5000Vrms
Output Voltage 300V
Output Type Darlington
Number of Elements 1
Configuration SINGLE
Number of Channels 1
Voltage - Forward (Vf) (Typ) 1.2V
Input Type DC
Forward Current 20mA
Output Current per Channel 150mA
Collector Emitter Voltage (VCEO) 1.5V
Rise / Fall Time (Typ) 60μs 50μs
Voltage - Output (Max) 300V
Collector Emitter Saturation Voltage 1.5V
Current - DC Forward (If) (Max) 50mA
Current Transfer Ratio (Min) 600% @ 1mA
Current Transfer Ratio (Max) 9000% @ 1mA
Compliance
RoHS Status RoHS Compliant
