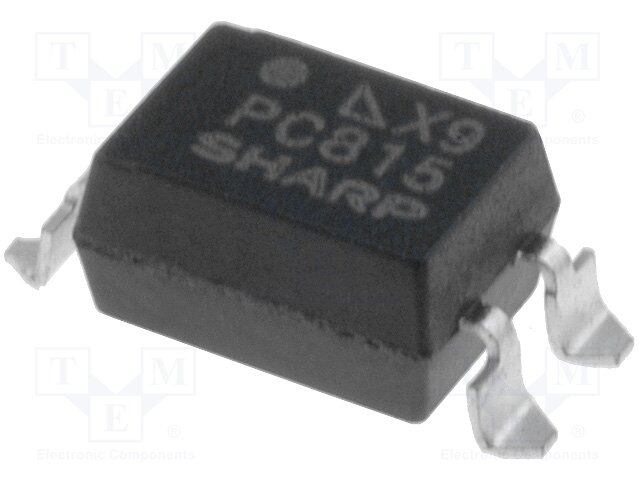

PC815XPJ000F
RoHS
/
Package 4-SMD, Gull Wing
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
Transistor Output Optocouplers T&R of PC815XIJ000F
PDF
/
Inventory: 8769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Number of Pins 4
Supplier Device Package 4-SMD
Technical
Operating Temperature -30°C~100°C
Packaging Tube
Published 2006
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Max Power Dissipation 200mW
Voltage - Isolation 5000Vrms
Output Voltage 35V
Output Type Darlington
Number of Elements 1
Number of Channels 1
Number of Circuits 1
Power Dissipation 200mW
Voltage - Forward (Vf) (Typ) 1.2V
Input Type DC
Forward Current 50mA
Output Current per Channel 75mA
Rise Time 300μs
Forward Voltage 1.4V
Fall Time (Typ) 250 μs
Collector Emitter Voltage (VCEO) 35V
Max Collector Current 80mA
Rise / Fall Time (Typ) 60μs 53μs
Current - Output / Channel 80mA
Reverse Breakdown Voltage 6V
Voltage - Output (Max) 35V
Max Input Current 50mA
Collector Emitter Saturation Voltage 1V
Current - DC Forward (If) (Max) 50mA
Current Transfer Ratio (Min) 600% @ 1mA
Current Transfer Ratio (Max) 7500% @ 1mA
Vce Saturation (Max) 1V
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
