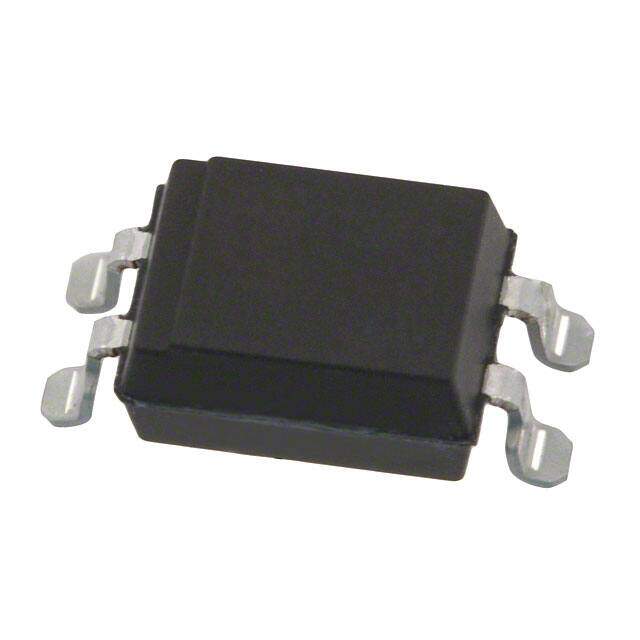

PC123XNYIP0F
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, Gull Wing
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
OPTOISOLATOR 5KV TRANSISTOR 4SMD
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7208
≥1 USD $2.7208
≥10 USD $2.2325
≥100 USD $2.16315
≥500 USD $2.0938
≥1000 USD $2.0235
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Vce Saturation (Max) 200mV
Current Transfer Ratio (Max) 400% @ 5mA
Current Transfer Ratio (Min) 50% @ 5mA
Current - DC Forward (If) (Max) 50mA
Collector Emitter Saturation Voltage 200mV
Max Input Current 50mA
Voltage - Output (Max) 70V
Reverse Breakdown Voltage 6V
Current - Output / Channel 50mA
Rise / Fall Time (Typ) 4μs 3μs
Max Collector Current 50mA
Collector Emitter Voltage (VCEO) 70V
Fall Time (Typ) 18 μs
Forward Voltage 1.4V
Rise Time 18μs
Output Current per Channel 50mA
Max Output Voltage 70V
Forward Current 50mA
Input Type DC
Voltage - Forward (Vf) (Typ) 1.2V
Power Dissipation 200mW
Number of Channels 1
Number of Elements 1
Output Type Transistor
Voltage - Isolation 5000Vrms
Max Power Dissipation 200mW
Min Operating Temperature -30°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -30°C~100°C
Physical
Supplier Device Package 4-SMD
Number of Pins 4
Package / Case 4-SMD, Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
