MCT2EVM
RoHS
/

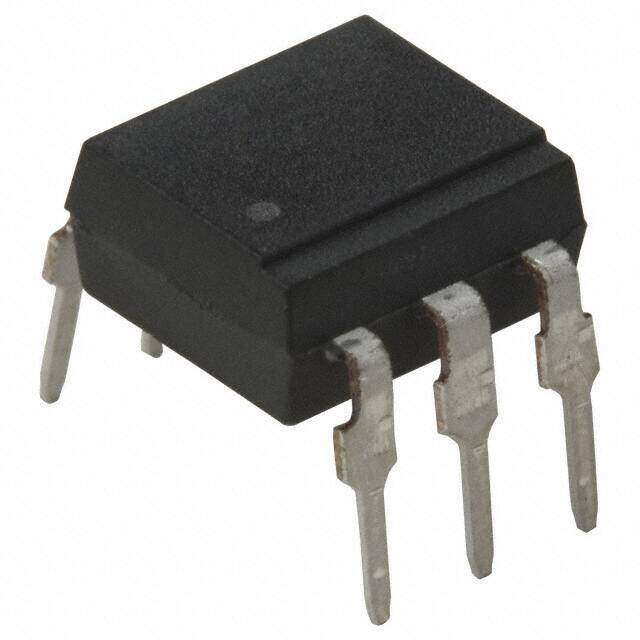

Package 6-DIP (0.300, 7.62mm)
Category Isolators / Optoisolators - Transistor, Photovoltaic Output
Description
6-DIP (0.300 7.62mm) 1 DC Obsolete Optoisolator Transistor Output 20% @ 10mA 7500Vpk 60mA -40C~100C
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.29545
≥1 USD $0.29545
≥10 USD $0.2432
≥100 USD $0.2356
≥500 USD $0.228
≥1000 USD $0.2204
Inventory: 5009
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Turn On / Turn Off Time (Typ) 2μs, 2μs
Current Transfer Ratio (Min) 20% @ 10mA
Current - DC Forward (If) (Max) 60mA
Collector Emitter Saturation Voltage 400mV
Reverse Breakdown Voltage 3V
Current - Output / Channel 50mA
Rise / Fall Time (Typ) 2μs 1.5μs
Collector Emitter Voltage (VCEO) 400mV
Rise Time 2μs
Output Current per Channel 50mA
Forward Current 100mA
Input Type DC
Voltage - Forward (Vf) (Typ) 1.25V
Power Dissipation 260mW
Number of Elements 1
Output Type Transistor with Base
Output Voltage 30V
Voltage - Isolation 7500Vpk
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 855mg
Number of Pins 6
Package / Case 6-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
