PS9814-1-A
RoHS
/
Package 8-SOIC (0.154, 3.90mm Width)
Category Isolators / Optoisolators - Logic Output
Description
OPTOISO 2.5KV OPEN COLL 8SSOP
PDF
/
Inventory: 4509
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Number of Pins 8
Supplier Device Package 8-SSOP
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Power Dissipation 40mW
Voltage - Supply 4.5V~5.5V
Voltage - Isolation 2500Vrms
Output Type Open Collector
Max Output Current 25mA
Number of Elements 1
Number of Channels 1
Output Current 25mA
Voltage - Forward (Vf) (Typ) 1.65V
Propagation Delay 54 ns
Input Type DC
Forward Current 20mA
Data Rate 10Mbps
Output Current per Channel 25mA
Forward Voltage 1.8V
Fall Time (Typ) 10 ns
Rise / Fall Time (Typ) 20ns 10ns
Current - Output / Channel 25mA
Current - DC Forward (If) (Max) 20mA
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Common Mode Transient Immunity (Min) 10kV/μs
Inputs - Side 1/Side 2 1/0
Compliance
RoHS Status RoHS Compliant

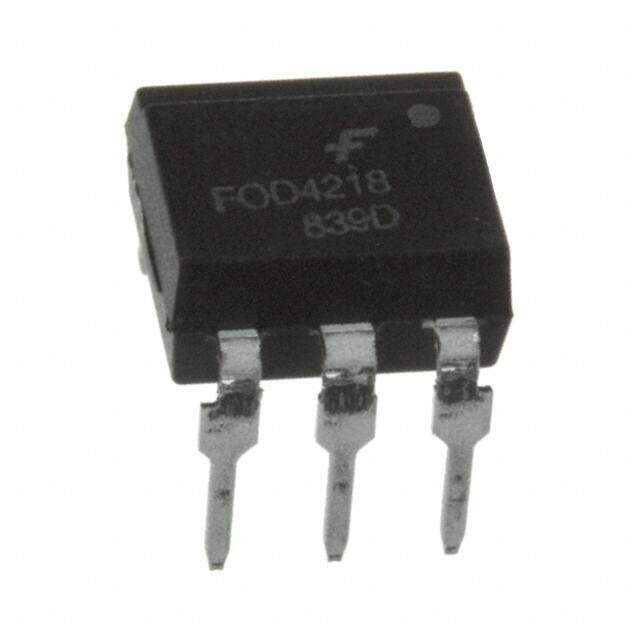

Alternative Model
