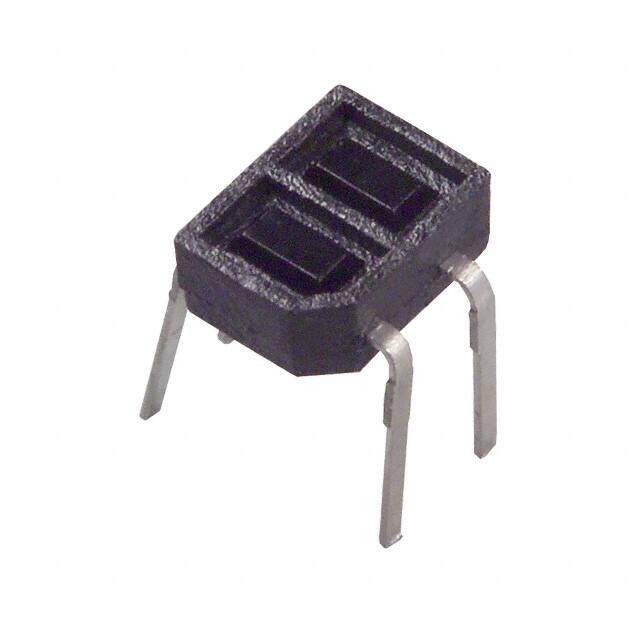

GP2S24
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Reflective - Analog Output
Description
PHOTOINTERRUPTER REFLEC .8MM DIP
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 30002
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Measurement Range-Min 0.7 mm
Measurement Range-Max 0.7 mm
Output Range 0.10mA
Sensors/Transducers Type LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Current - DC Forward (If) (Max) 50mA
Sensing Method Reflective
Collector Emitter Breakdown Voltage 35V
Sensing Distance 0.031 (0.8mm)
Max Collector Current 20mA
Forward Voltage 1.2V
Rise Time 20μs
Response Time 20μs, 20μs
Output Current 20mA
Output Type Phototransistor
Reach Compliance Code unknown
Additional Feature 2V VCE
Terminal Finish Tin/Lead (Sn/Pb)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 1997
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Number of Pins 4
Package / Case PCB Mount
Mounting Type Through Hole
Mount Through Hole
