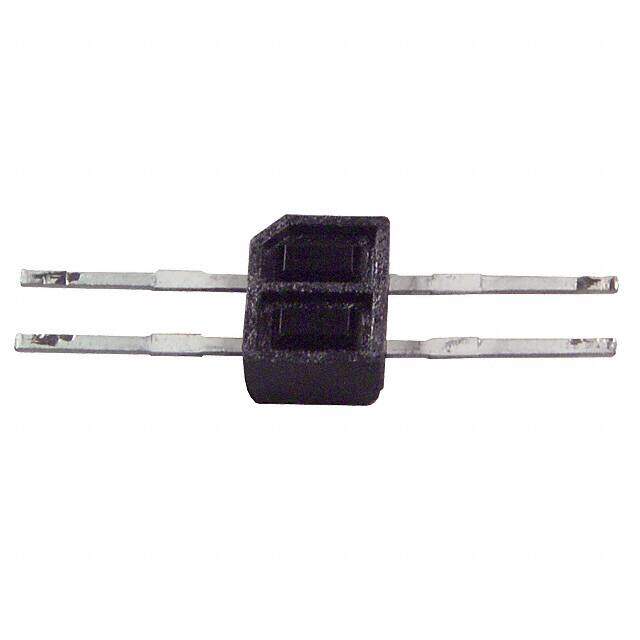

GP2L26
RoHS
/
Package 4-SMD
Category Sensors, Transducers / Optical Sensors - Reflective - Analog Output
Description
PHOTOINTERRUPTER REFLEC .8MM SMD
PDF
/
Inventory: 8413
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Measurement Range-Min 0.7 mm
Measurement Range-Max 0.7 mm
Sensors/Transducers Type LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Sensing Method Reflective
Reverse Breakdown Voltage 6V
Collector Emitter Breakdown Voltage 35V
Sensing Distance 0.031 (0.8mm)
Max Collector Current 50mA
Collector Emitter Voltage (VCEO) 35V
Fall Time (Typ) 400 μs
Forward Voltage 1.2V
Rise Time 400μs
Response Time 80μs, 70μs
Forward Current 50mA
Output Current 50mA
Power Dissipation 100mW
Number of Elements 1
Output Type Photodarlington
Reach Compliance Code unknown
Additional Feature 2V VCE
Terminal Finish Tin/Lead (Sn/Pb)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 1997
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Number of Pins 4
Package / Case 4-SMD
Mounting Type Surface Mount
Mount Surface Mount
