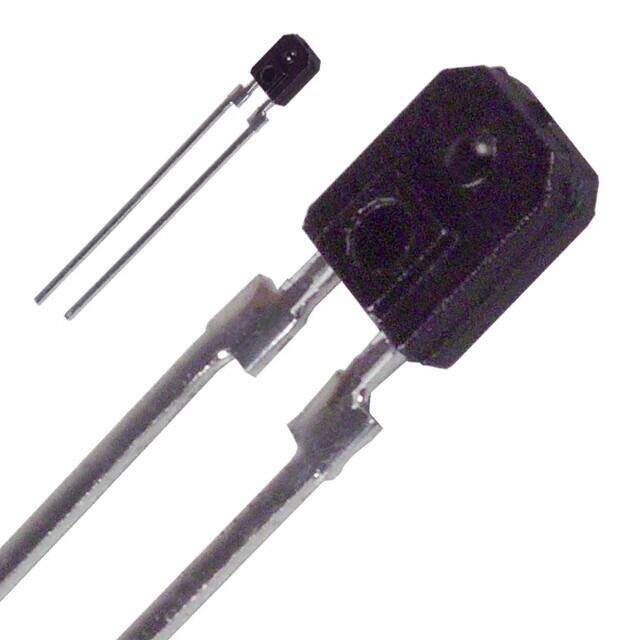

PT4800F
RoHS
/
Package Radial
Category Sensors, Transducers / Optical Sensors - Phototransistors
Description
SENSOR PHOTO 860NM SIDE VIEW RAD
PDF
/
Inventory: 3232
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Operating Temperature -25°C~85°C TA
Packaging Tube
Published 1997
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Max Power Dissipation 75mW
Orientation Side View
Number of Elements 1
Polarity NPN
Power Dissipation 75mW
Output Current 20mA
Viewing Angle 70°
Power - Max 75mW
Rise Time 3μs
Fall Time (Typ) 3.5 μs
Collector Emitter Voltage (VCEO) 6V
Max Collector Current 20mA
Collector Emitter Breakdown Voltage 35V
Voltage - Collector Emitter Breakdown (Max) 35V
Current - Collector (Ic) (Max) 20mA
Wavelength 860nm
Dark Current 100μA
Current - Dark (Id) (Max) 100μA
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
