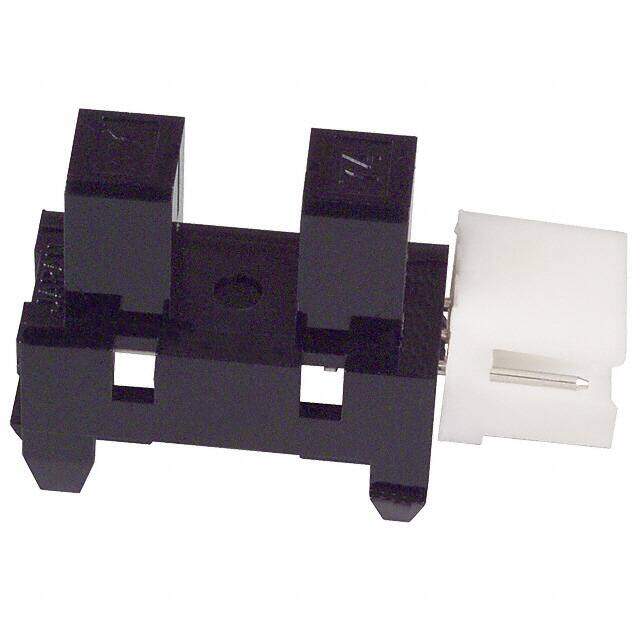

GP1S74P
RoHS
/
Package Module, Connector
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
SENSOR OPT SLOT PHOTOTRANS MODUL
PDF
/
Inventory: 2630
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Snap in
Mounting Type Snap-In
Package / Case Module, Connector
Number of Pins 3
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 1997
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Unamplified
Number of Functions 1
Reach Compliance Code unknown
Output Configuration Phototransistor
Output Current 20mA
Response Time 3μs, 4μs
Rise Time 3μs
Forward Voltage 1.2V
Max Collector Current 20mA
Sensing Distance 0.197 (5mm)
Collector Emitter Breakdown Voltage 35V
Sensing Method Through-Beam
Current - DC Forward (If) (Max) 50mA
Slot Width-Nom 5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
