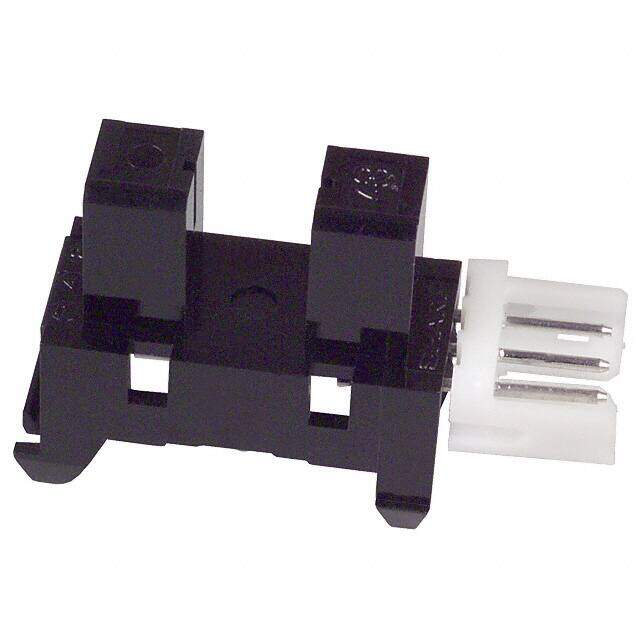

GP1S73P2
RoHS
/
Package Module, Connector
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
SENSOR OPT SLOT PHOTOTRANS MODUL
PDF
/
Inventory: 1129
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Current - DC Forward (If) (Max) 50mA
Sensing Method Through-Beam
Current - Collector (Ic) (Max) 20mA
Voltage - Collector Emitter Breakdown (Max) 35V
Collector Emitter Breakdown Voltage 35V
Sensing Distance 0.197 (5mm)
Max Collector Current 20mA
Forward Voltage 1.2V
Rise Time 3μs
Response Time 3μs, 4μs
Output Current 20mA
Output Configuration Phototransistor
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Type Unamplified
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 1997
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Package / Case Module, Connector
Mounting Type Snap-In
Mount Snap in
