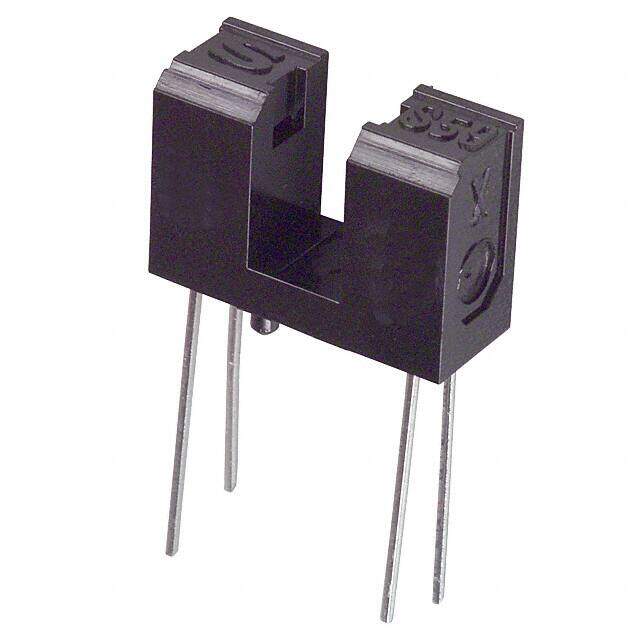

GP1S59 image
Favorite
GP1S59 image
Favorite
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPT SLOT PHOTOTRAN PCB MT
PDF
/
Inventory: 9250
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case PCB Mount

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 1997
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Unamplified
Number of Functions 1
Reach Compliance Code unknown
Output Configuration Phototransistor
Output Current 20mA
Response Time 3μs, 4μs
Rise Time 3μs
Forward Voltage 1.25V
Max Collector Current 20mA
Sensing Distance 0.165 (4.2mm)
Collector Emitter Breakdown Voltage 35V
Forward Current-Max 0.05A
Sensing Method Through-Beam
Current - DC Forward (If) (Max) 50mA
Dark Current-Max 100nA
Slot Width-Nom 4.2mm
On-state Collector Current-Nom 20mA

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
