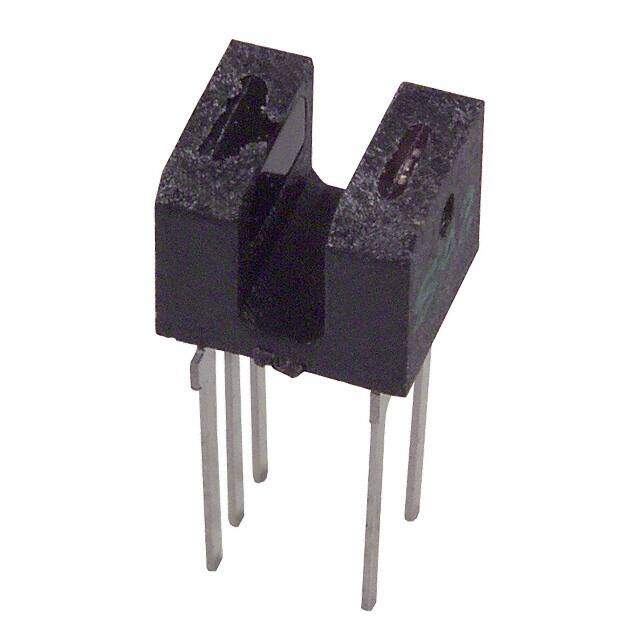

GP1S39
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
SENSOR OPT SLOT PHOTOTRAN PCB MT
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26885
≥1 USD $0.26885
≥10 USD $0.2204
≥100 USD $0.21375
≥500 USD $0.2071
≥1000 USD $0.1995
Inventory: 1108
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case PCB Mount
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 1999
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Unamplified
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Output Configuration Phototransistor
Output Current 20mA
Response Time 50μs, 50μs
Rise Time 50μs
Forward Voltage 1.2V
Max Collector Current 20mA
Sensing Distance 0.059 (1.5mm)
Collector Emitter Breakdown Voltage 35V
Voltage - Collector Emitter Breakdown (Max) 35V
Current - Collector (Ic) (Max) 20mA
Sensing Method Through-Beam
Current - DC Forward (If) (Max) 50mA
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
