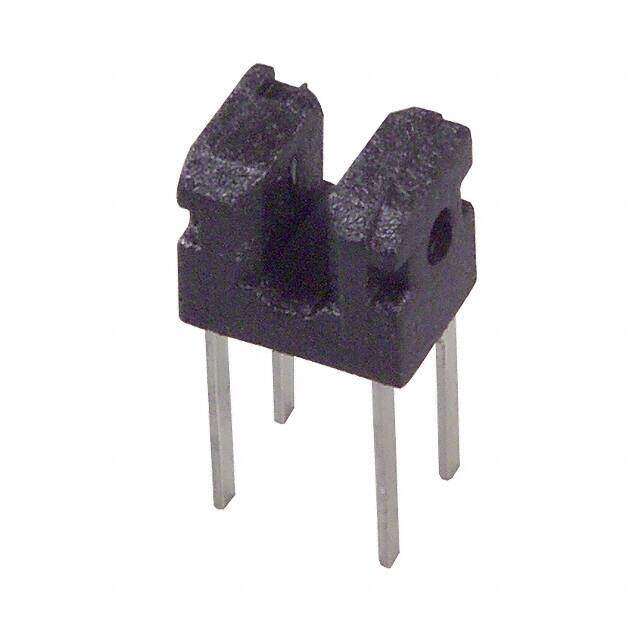

GP1S096HCZ
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
SENSOR OPT SLOT PHOTOTRAN PCB MT
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.27645
≥1 USD $0.27645
≥10 USD $0.22705
≥100 USD $0.2204
≥500 USD $0.2128
≥1000 USD $0.20615
Inventory: 1984
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case PCB Mount
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2000
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Unamplified
Number of Functions 1
Reach Compliance Code unknown
Output Configuration Phototransistor
Output Current 20mA
Response Time 50μs, 50μs
Rise Time 50μs
Forward Voltage 1.2V
Max Collector Current 20mA
Sensing Distance 0.039 (1mm)
Collector Emitter Breakdown Voltage 35V
Forward Current-Max 0.05A
Sensing Method Through-Beam
Current - DC Forward (If) (Max) 50mA
Dark Current-Max 100nA
Slot Width-Nom 1mm
On-state Collector Current-Nom 20mA
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
