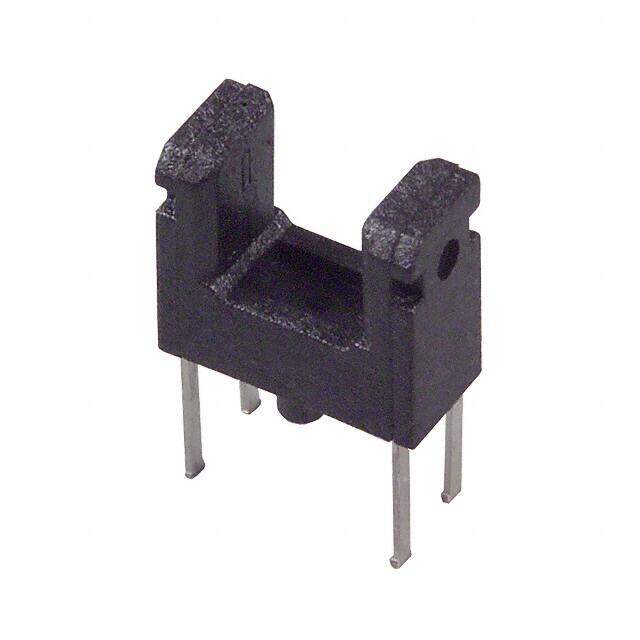

GP1S094HCZ
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
SENSOR OPT SLOT PHOTOTRAN PCB MT
PDF
/
Inventory: 4718
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case PCB Mount
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2001
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Unamplified
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Output Configuration Phototransistor
Output Current 20mA
Response Time 50μs, 50μs
Rise Time 50μs
Forward Voltage 1.2V
Max Collector Current 20mA
Sensing Distance 0.118 (3mm)
Collector Emitter Breakdown Voltage 35V
Voltage - Collector Emitter Breakdown (Max) 35V
Current - Collector (Ic) (Max) 20mA
Sensing Method Through-Beam
Current - DC Forward (If) (Max) 50mA
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
