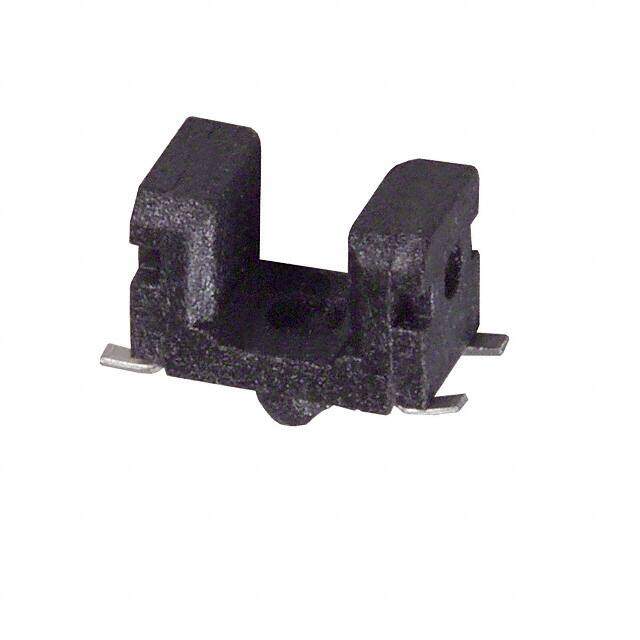

GP1S092HCPI image
Favorite
GP1S092HCPI image
Favorite
RoHS
/
Package 4-SMD
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description PHOTOINTERRUPTER SLOT 2.0MM SMD
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.27645
≥1 USD $0.27645
≥10 USD $0.22705
≥100 USD $0.2204
≥500 USD $0.2128
≥1000 USD $0.20615
Inventory: 41009
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD
Number of Pins 4

Technical

Operating Temperature -25°C~85°C
Packaging Cut Tape (CT)
Published 2000
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Unamplified
Number of Functions 1
Output Configuration Phototransistor
Output Current 20mA
Response Time 50μs, 50μs
Rise Time 50μs
Forward Voltage 1.2V
Collector Emitter Voltage (VCEO) 35V
Max Collector Current 20mA
Sensing Distance 0.079 (2mm)
Collector Emitter Breakdown Voltage 35V
Forward Current-Max 0.05A
Sensing Method Through-Beam
Max Breakdown Voltage 35V
Current - DC Forward (If) (Max) 50mA
Dark Current-Max 100nA
Slot Width-Nom 2mm
On-state Collector Current-Nom 0.1mA

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
