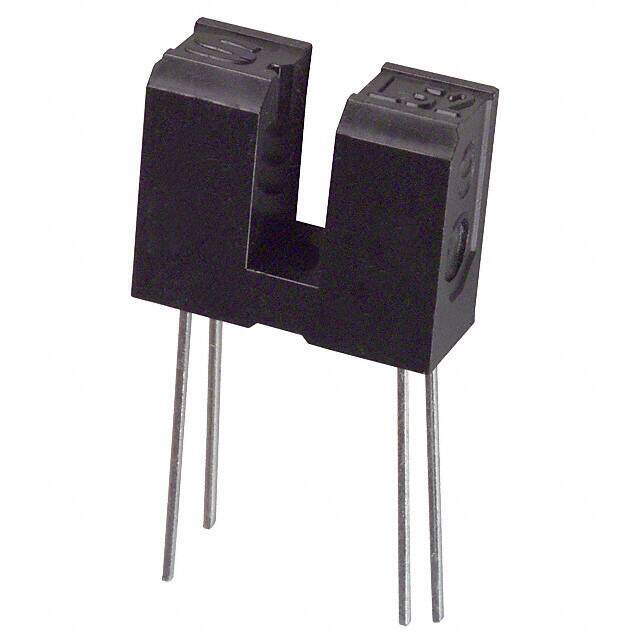

GP1L52V
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description
PHOTOINTERRUPTER SLOT 3.0MM PCB
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 77
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Current - DC Forward (If) (Max) 50mA
Sensing Method Through-Beam
Reverse Breakdown Voltage 6V
Current - Collector (Ic) (Max) 40mA
Voltage - Collector Emitter Breakdown (Max) 35V
Collector Emitter Breakdown Voltage 35V
Sensing Distance 0.118 (3mm)
Max Collector Current 40mA
Collector Emitter Voltage (VCEO) 35V
Forward Voltage 1.25V
Rise Time 80μs
Response Time 80μs, 70μs
Forward Current 50mA
Output Current 40mA
Output Configuration Photodarlington
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Type Unamplified
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 1997
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Number of Pins 4
Package / Case PCB Mount
Mounting Type Through Hole
Mount Through Hole
