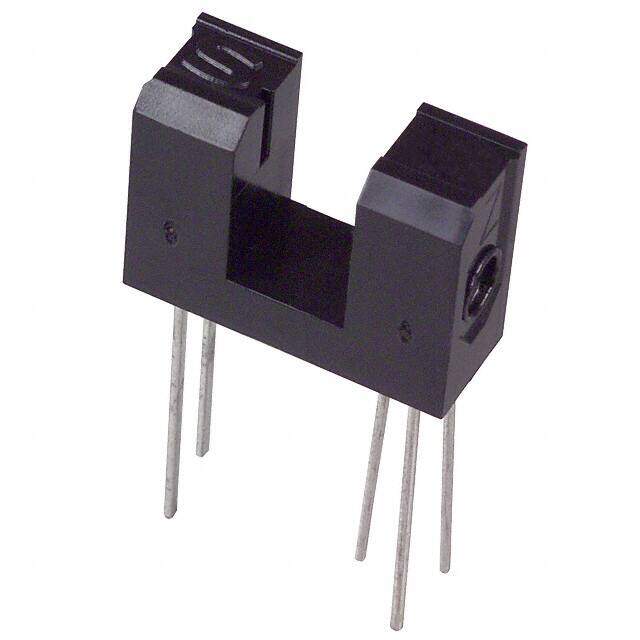

GP1A53HR
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Logic Output
Description
PHOTOINTER OPIC SLOT 5.0MM PCB
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65965
≥1 USD $1.65965
≥10 USD $1.36135
≥100 USD $1.31955
≥500 USD $1.2768
≥1000 USD $1.23405
Inventory: 14664
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case PCB Mount
Number of Pins 5
Technical
Operating Temperature -25°C~85°C TA
Published 1997
Series OPIC?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature TTL COMPATIBLE
Voltage - Supply 4.5V~17V
Number of Functions 1
Reach Compliance Code unknown
Number of Elements 1
Operating Supply Current 1.7mA
Output Configuration Pull-Up Resistor, Buffer
Power Dissipation 250mW
Optoelectronic Device Type LOGIC OUTPUT SLOTTED SWITCH
Forward Current 50mA
Response Time 1μs, 0.05μs
Rise Time 500ns
Fall Time (Typ) 500 ns
Sensing Distance 0.197 (5mm)
Reverse Breakdown Voltage 6V
Sensing Method Through-Beam
Hysteresis Ratio-Nom 0.75
Slot Width-Nom 5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
