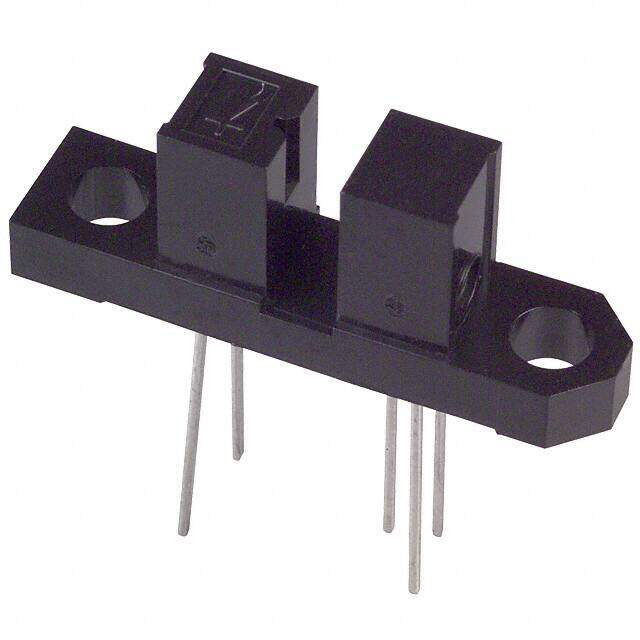

GP1A50HR
RoHS
/
Package PCB Mount
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Logic Output
Description
PHOTOINTER OPIC SLOT 3.0MM PCB
PDF
/
Inventory: 9847
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Slot Width-Nom 3mm
Hysteresis Ratio-Nom 0.75
On-State Current-Max 0.05A
Sensing Method Through-Beam
Forward Current-Max 0.05A
Sensing Distance 0.118 (3mm)
Forward Voltage 1.1V
Rise Time 100ns
Response Time 1μs, 0.05μs
Optoelectronic Device Type LOGIC OUTPUT SLOTTED SWITCH
Output Configuration Pull-Up Resistor, Buffer
Operating Supply Current 1.7mA
Number of Functions 1
Voltage - Supply 4.5V~17V
Additional Feature TTL COMPATIBLE
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Series OPIC?
Published 1997
Operating Temperature -25°C~85°C TA
Physical
Package / Case PCB Mount
Mounting Type Through Hole
Mount Through Hole
