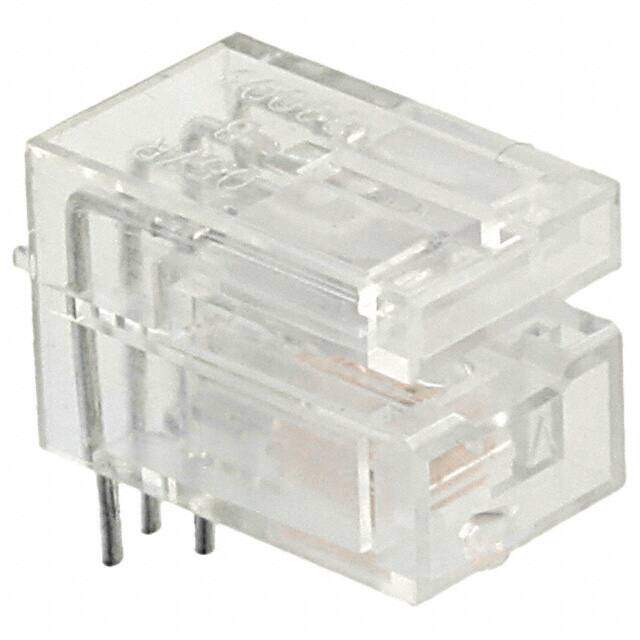

GP1A057RBKLF
RoHS
/
Package Slotted Module
Category Sensors, Transducers / Optical Sensors - Photointerrupters - Slot Type - Logic Output
Description
SENSOR OPTICAL SLOTTED MODULE
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2401
≥1 USD $2.2401
≥10 USD $1.83825
≥100 USD $1.7803
≥500 USD $1.7233
≥1000 USD $1.66535
Inventory: 674
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Low Level Output Current 8mA
Sensing Method Through-Beam
Reverse Voltage 1V
Fall Time (Typ) 1 μs
Forward Voltage 2.1V
Rise Time 1μs
Response Time 1μs
Current - Supply 7mA
Forward Current 20mA
Output Configuration NPN - Open Collector
Operating Supply Current 7mA
Voltage - Supply 2.7V~5.5V
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2014
Operating Temperature -10°C~70°C TA
Physical
Package / Case Slotted Module
Mounting Type Through Hole
Mount Through Hole
Alternative Model
