8813210000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables

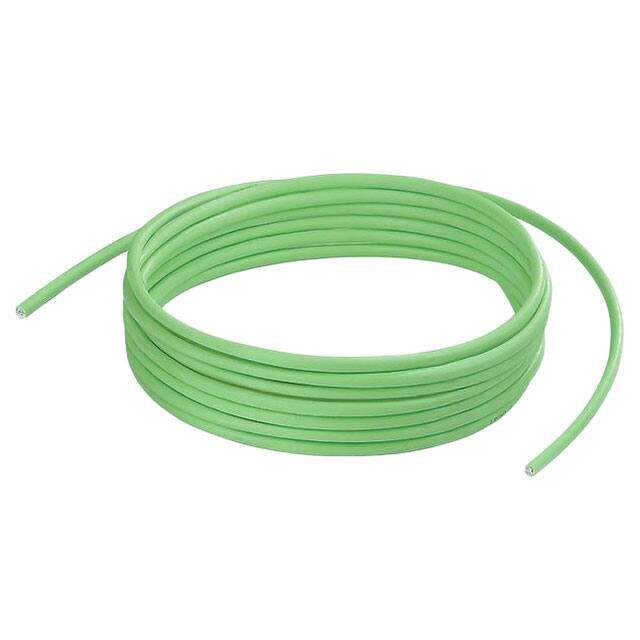

Description Copper Wire 8Conductors 26AWG/7AWG 100m 6.8mm Copper Green
PDF
/
Inventory: 1849
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Cable
Insulation Material PU
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Aluminum; Copper, Tinned

Technical

Operating Temperature -40°C~80°C
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 26 AWG
Voltage 700V
Cable Type Multi-Pair, Cat5
Wire/Cable Type Multi-Pair
Cable Length 100m
Wire/Cable Gauge 26 AWG
Jacket Color Green
Conductor Strand 7/26
Jacket (Insulation) Diameter 0.268 (6.81mm)
Insulation Diameter 6.8072 mm
Wire/Cable Diameter 6.8 mm
Shield Type Foil, Braid
Shield Coverage 100%, 90%

Dimensions

Length 328.1' 100.0m
Jacket (Insulation) Thickness 0.0335 0.851mm
Insulation Thickness 838.2μm

Compliance

RoHS Status RoHS Compliant
