8813170000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

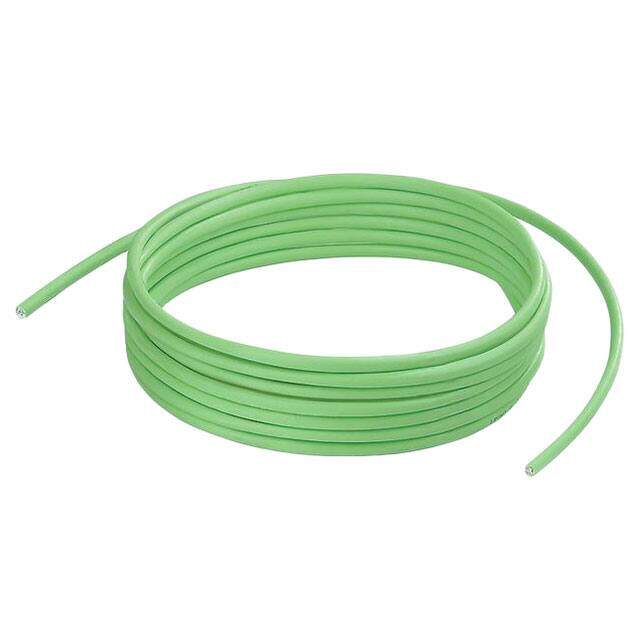

UTP Cable 8Conductors 100m 0.98mm Tin Plated Copper Green
PDF
/
Buying Options
Total Price: USD $419.2
Unit Price: USD $419.1968
≥1 USD $419.1968
≥10 USD $387.81307
≥100 USD $374.36256
≥500 USD $365.396117
≥1000 USD $356.42992
≥3000 USD $334.0128
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 508μm
Jacket (Insulation) Thickness 0.0197 0.500mm
Length 328.1' 100.0m
Technical
Shield Coverage 100%
Shield Type Foil, Braid
Wire/Cable Diameter 980 μm
Conductor Insulation Polyethylene (PE)
Insulation Diameter 6.7056 mm
Jacket (Insulation) Diameter 0.264 (6.71mm)
Conductor Strand 7/26
Jacket Color Green
Wire/Cable Gauge 26 AWG
Cable Length 100m
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair, Cat7
Voltage 700V
Wire Gauge 26 AWG
Number of Conductors 8 (4 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Operating Temperature -40°C~80°C
Physical
Shield Material Aluminum; Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Insulation Material PVC
Mount Cable
Contact Plating Tin
Supply Chain
Factory Lead Time 8 Weeks
