8813140000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

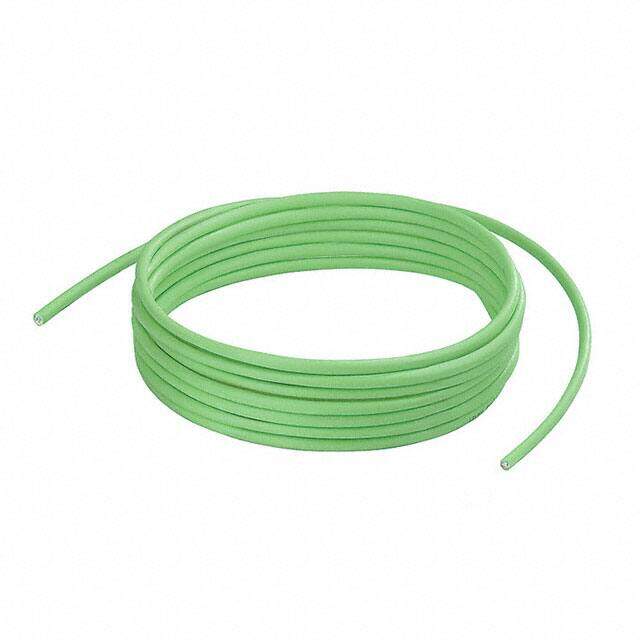

UTP Cable 8Conductors 100m 1.4mm Tin Plated Copper Green
PDF
/
Inventory: 1168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Cable
Insulation Material PU
Conductor Material Copper, Bare
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Aluminum; Copper, Bare
Technical
Operating Temperature -40°C~80°C
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 23 AWG
Voltage 700V
Cable Type Multi-Pair, Cat7
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 23 AWG
Jacket Color Green
Jacket (Insulation) Diameter 0.331 (8.41mm)
Insulation Diameter 8.4074 mm
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%
Dimensions
Length 328.1' 100.0m
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
