30-01224
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

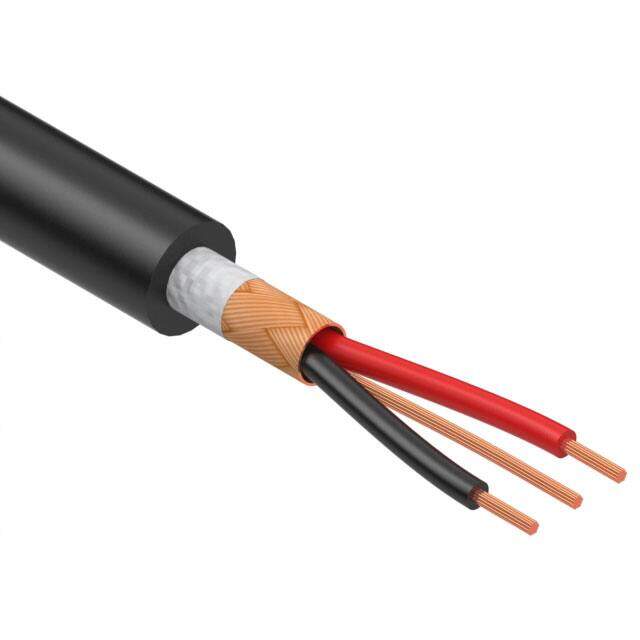

CBL 20AWG TPU SHLD 2CON
PDF
/
Buying Options
Total Price: USD $6.48
Unit Price: USD $6.4768
≥1 USD $6.4768
≥10 USD $5.29584
≥100 USD $4.11928
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 20280
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0315 0.800mm
Technical
Shield Coverage 65%
Shield Type Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.205 (5.21mm)
Conductor Strand 41/0.005
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -40°C~80°C
Physical
Shield Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 15 Weeks
