30-01223
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

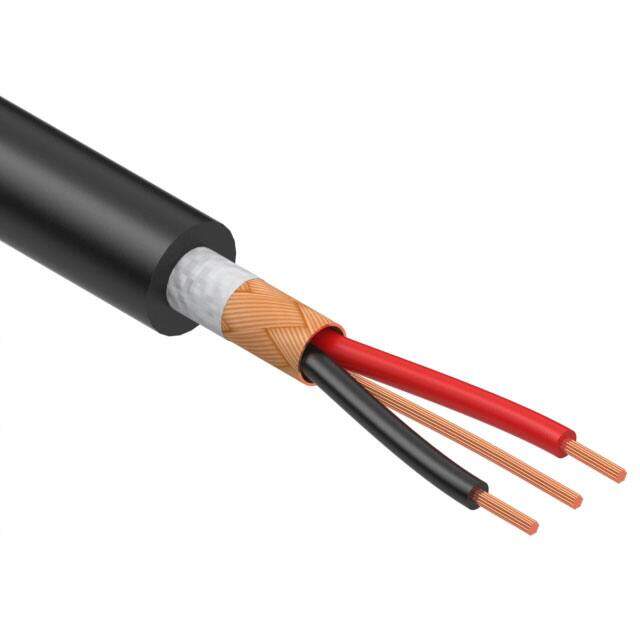

CBL 18AWG TPU SHLD 2CON
PDF
/
Buying Options
Total Price: USD $159.86
Unit Price: USD $159.8608
≥1 USD $159.8608
≥10 USD $142.09888
≥100 USD $128.77744
Inventory: 39
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Bare
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 2
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 65/0.0051
Jacket (Insulation) Diameter 0.228 (5.79mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Braid
Shield Coverage 65%
Dimensions
Jacket (Insulation) Thickness 0.0315 0.800mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 20280
