30-01208
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

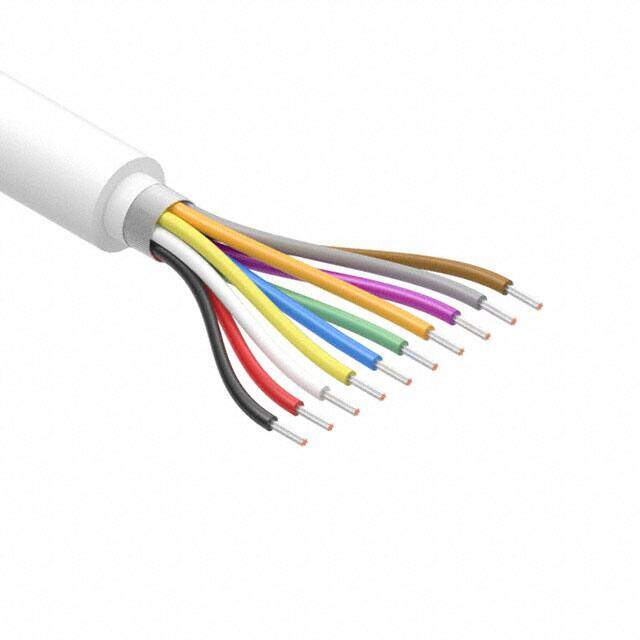

CBL 10CON 32AWG SHLD WHT 153M
PDF
/
Inventory: 3982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0197 0.500mm
Length 502.0' 153.0m
Technical
Shield Coverage 90%
Shield Type Spiral
Conductor Insulation High Density Polyethylene (HDPE)
Jacket (Insulation) Diameter 0.142 (3.61mm)
Conductor Strand 19/0.002
Jacket Color White
Cable Type Multi-Conductor
Voltage 150V
Wire Gauge 32 AWG
Number of Conductors 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -40°C~70°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 14 Weeks
